Illusion

Discover Your XC Potential

At take off, in flight and during landings it will always react the way you are expecting. The Illusion convinces by its precise handling and smooth behavior in the air.

The clean designed airfoils deliver outstanding glide as by trim speed as accelerated. The stability in accelerated mode is exceptional. Selected materials warranty longevity and correct line geometry without a need of trimming. The semi-light canopy will delight you by traveling and on your first hike and fly adventures. Medium size has weight of 4.6 kg.

Illusion	22	24	26	28	30	33
Zoom flat [%]	88	92	96	100	104	109.5
Area flat [m²]	21.64	23.65	25.75	27.94	30.22	33.5
Area projected [m²]	17.81	19.47	21.2	23	24.88	27.58
Span flat [m]	10.75	11.24	11.73	12.22	12.71	13.38
Aspect ratio flat	5.34	5.34	5.34	5.34	5.34	5.34
Root cord [m]	2.53	2.64	2.76	2.87	2.98	3.14
Cells	52	52	52	52	52	52
Weight [kg]	4.1	4.35	4.6	4.85	5.1	5.45
Weight range *[kg]	55 - 72	70 - 90	78 - 100	85 - 110	105 - 130	115 - 145
Weight range *[lbs]	121 - 159	154 - 198	172 - 220	187 - 243	231 - 287	254 - 320
Min. speed [km/h]	23 - 25	23 - 25	23 - 25	23 - 25	23 - 25	23 - 25
Trim speed [km/h]	37 - 39	37 - 39	37 - 39	37 - 39	37 - 39	37 - 39
Top speed (accelerator)[km/h]	48 - 49	48 - 49	48 - 49	48 - 49	48 - 49	48 - 49
Glide ratio	+9.8	+9.8	+9.8	+9.8	+9.8	+9.8
Min. sink rate [m/s]	1.05	1.05	1.05	1.05	1.05	1.05
Certificate	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B
* pilot equipped = weight naked + approx. 20 kg (44 lbs)

Illusion

Zoom flat [%]

100

104

109.5

Area flat [m²]

21.64

23.65

25.75

27.94

30.22

33.5

Area projected [m²]

17.81

19.47

21.2

24.88

27.58

Span flat [m]

10.75

11.24

11.73

12.22

12.71

13.38

Aspect ratio flat

5.34

Root cord [m]

2.53

2.64

2.76

2.87

2.98

3.14

Cells

Weight [kg]

4.1

4.35

4.6

4.85

5.1

5.45

Weight range *[kg]

55 - 72

70 - 90

78 - 100

85 - 110

105 - 130

115 - 145

Weight range *[lbs]

121 - 159

154 - 198

172 - 220

187 - 243

231 - 287

254 - 320

Min. speed [km/h]

23 - 25

Trim speed [km/h]

37 - 39

Top speed (accelerator)[km/h]

48 - 49

Glide ratio

+9.8

Min. sink rate [m/s]

1.05

Certificate

LTF/EN-B

* pilot equipped = weight naked + approx. 20 kg (44 lbs)

Item	Material
Surface Top/Bottom Leading Edge:	Skytex 38 Universal - 38 g/m²
Surface Top Trailing Edge:	Skytex 32 Universal - 32 g/m²
Surface Bottom Trailing Edge:	Skytex 27 Classic II - 27 g/m²
Main ribs:	Skytex 32 Hard - E29A, 32 g/m²
Diagonal ribs:	Skytex 32 Hard - E29A, 32 g/m²
Minor ribs:	Skytex 32 Hard - E29A, 29 g/m²
Upper lines:	Edelrid Aramid/Kevlar 7343 -75 kg; 6843 - 80kg
Main lines:	Edelrid Aramid/Kevlar 7343 -190kg; 230kg;

Item

Material

Surface Top/Bottom Leading Edge:

Skytex 38 Universal - 38 g/m²

Surface Top Trailing Edge:

Skytex 32 Universal - 32 g/m²

Surface Bottom Trailing Edge:

Skytex 27 Classic II - 27 g/m²

Main ribs:

Skytex 32 Hard - E29A, 32 g/m²

Diagonal ribs:

Skytex 32 Hard - E29A, 32 g/m²

Minor ribs:

Skytex 32 Hard - E29A, 29 g/m²

Upper lines:

Edelrid Aramid/Kevlar 7343 -75 kg; 6843 - 80kg

Main lines:

Edelrid Aramid/Kevlar 7343 -190kg; 230kg;

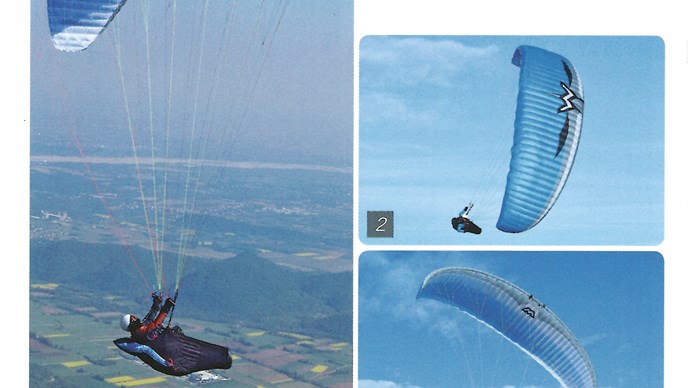

Mac Para Illusion Conclusion

Both optically and emotionally, the Illusion is most what is widely known as an intermediate paraglider. It has a calm, confidence-inspiring feeleing in flight, but is nevertheless not insensitive and has a refreshingly smooth, precise and responsive handling which does not allow any criticism. Regarding the performance the Illusion feels convincingly. In addition, with weight of 4.6 kg it was the lightest glider in the test field. This predeterminate the wing for adventures away from cableway or road.

Franz Altmann
Thermik.at

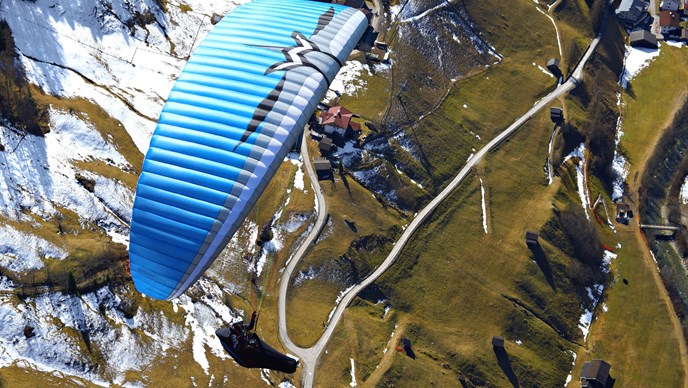

Illusion 28 - Jürgen Karthe

Der Illusion ist als Erstschirm nach der Ausbildung sehr gut geeignet! Hier dürfte der Illusion Piloten ansprechen, welche erste Erfahrungen mit dem Thermikfliegen machen wollen. Der Schirm ist erstklassig zu starten und vermittelt fortan ein gutes, sattes und unkompliziertes Fluggefühl. Ungewollte dynamische Flugmanöver sind nahezu ausgeschlossen und bedürfen kraftaufwendiger Eingriffe oder sehr groben Störungen. Die Kalotte ist sehr klappresistent. Härterer Turbulenzen werden sehr gut ausgeglichen, aber gleichermaßen auch deutlich angezeigt, indem Rückmeldungen am Tragegurt erfolgen. Jedoch ist die Ausgeprägtheit der moderat abgedämpften Schläge sehr pilotenfreundlich und erhöhen das Sicherheitsgefühl immens.

Jürgen Karthe

Test Parapente + fr

Vous trouverez dans ces pages 2 tests d'ailes Mac Para... Des envois de Erwan Didriche, qui les a abondamment utilisées et appréciées, des essais « coup de cœur » pour ces ailes, belles, qui mériteraient d'être mieux connues, et qui sont dorénavant bien distribuées.
