Eden 6

The Eden series sticks to it’s principles:
Change is the only constant

With the Eden 6, we introduce the new revolutionary “leading-edge-technology” to the B-Class. The completely new constructed nose grants the glider an extremely high XC potential. It transfers our know-how and experience from the successful Elan into the Eden series. The result is a lightweight designed glider with extraordinary glide performance that beats its competitors in accelerated flight. All this with a high degree of passive safety.

The highly balanced canopy is combined with sportive handling in thermals. Easy launching and landing characteristics have always been a Mac Para tradition and are being continued with the Eden 6. It’s new performance features, progressive handling and safety will convince many pilots in search of the perfect XC paraglider.

Lightweight design in all details

The design was optimized in every way. A new profile combined with lightweight leading edge reinforcement on the panels with shaped rigifoils makes the canopy clean and very performing. Unsheathed gallery lines and thin sheathed main lines decrease the drag significantly. Triple 3D shaping offers not only new color design on the canopy but increased aerodynamic smoothness. Mini ribs on the trailing edge, higher arc, new design of the stabilizer all help to reduce the drag and increase the performance of the Eden 6. The rigidity of the canopy together with reinforced diagonals and load bearing straps have been optimized for enjoyable flight comfort.

Best materials for a high durability

The Eden 6 is manufactured from proven Skytex materials to warranty longevity. Skytex 40 hard finish is used for main and diagonal ribs, Skytex 38 classic for external ribs, top and bottom surfaces. The gallery lines are made from unsheathed Edelrid Aramid/Kevlar, the main lines are made from sheathed Liros PPSL Dynema lines. Risers are made from narrow Kevlar/Polyester straps and are featured with high quality HARKEN ball bearing pulleys.

Are you an Eden 6 pilot?

The Eden 6 is a high-end EN B glider designed for ambitious cross-country pilots. The Eden 6 does require a degree of skill. It is certified to the EN-B category and you will feel safe and secure flying it. The Eden 6 is not suitable for beginners and occasional pilots. For those our Muse 4 is the better choice.

Make it Yours…

The hardest part is picking your favorite Color and Size. If you need help your local MAC PARA dealer will help you choosing the right size to maximize the performance of your new EDEN 6.

Sizes: The EDEN 6 is available in sizes 22, 24, 26, 28, 30, 33.

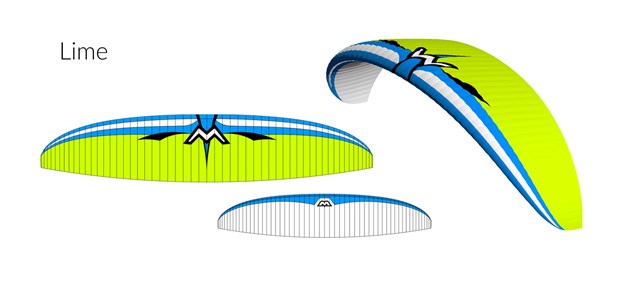

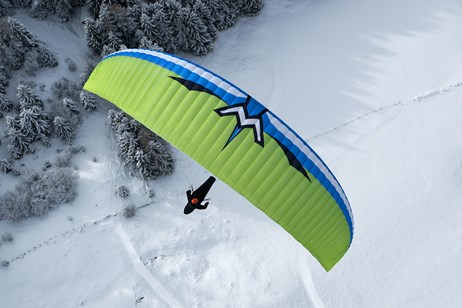

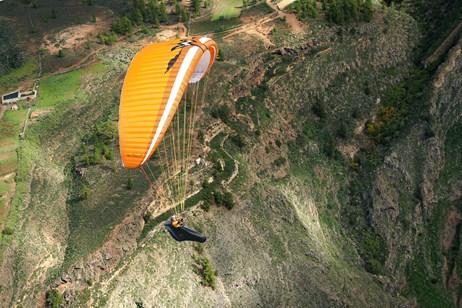

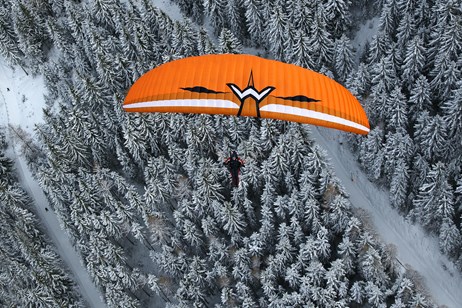

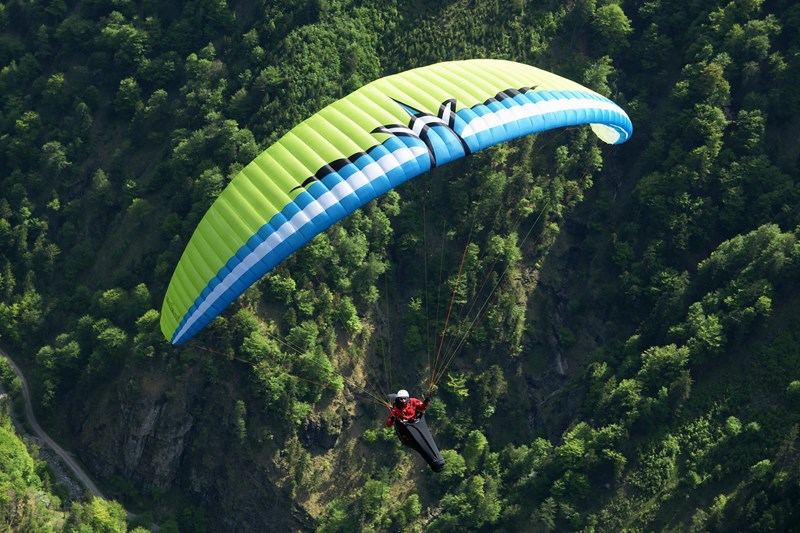

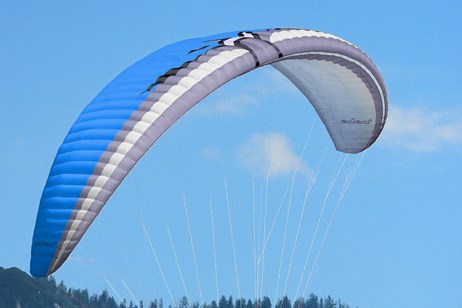

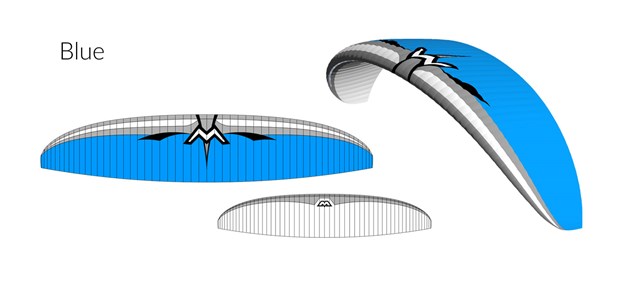

Serial Designs: The main base colors are LIME, ORANGE, and BLUE.

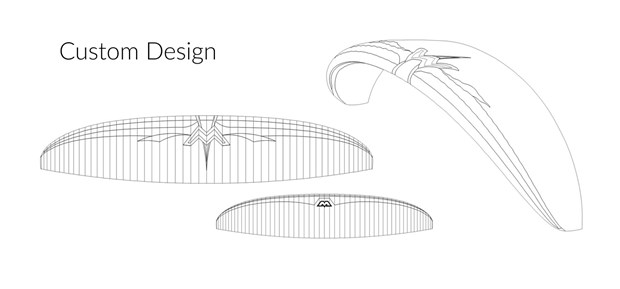

Special Design: For an extra charge you can choose out of a wide range of different colors.

Eden 6	22	24	26	28	30	33
Zoom flat [%]	88	92.5	96	100	104	109
Area flat [m²]	21.54	23.79	25.63	27.81	30.08	33.04
Area projected [m²]	21.54	20.38	21.95	23.82	25.76	28.3
Span flat [m]	11.28	11.86	12.31	12.82	13.33	13.97
Aspect ratio flat	5.91	5.91	5.91	5.91	5.91	5.91
Root cord [m]	2.46	2.58	2.68	2.79	2.9	3.04
Cells	56	56	56	56	56	56
Weight [kg]	4.65	4.95	5.2	5.5	5.85	6.2
Weight range *[kg]	55 - 75	70 - 90	78 - 100	90 - 112	105 - 130	115 - 145
Weight range *[lbs]	121 - 165	154 - 198	172 - 220	198 - 247	231 - 287	254 - 320
Min. speed [km/h]	23 - 25	23 - 25	23 - 25	23 - 25	23 - 25	23 - 25
Trim speed [km/h]	37 - 39	37 - 39	37 - 39	37 - 39	37 - 39	37 - 39
Top speed (accelerator)[km/h]	50 - 52	50 - 52	50 - 52	50 - 52	50 - 52	50 - 52
Glide ratio	+10	+10	+10	+10	+10	+10
Min. sink rate [m/s]	1.05	1.05	1.05	1.05	1.05	1.05
Certificate	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B	LTF/EN-B
* pilot equipped = weight naked + cca. 20 kg (44 lbs)

Eden 6

Zoom flat [%]

92.5

100

104

109

Area flat [m²]

21.54

23.79

25.63

27.81

30.08

33.04

Area projected [m²]

21.54

20.38

21.95

23.82

25.76

28.3

Span flat [m]

11.28

11.86

12.31

12.82

13.33

13.97

Aspect ratio flat

5.91

Root cord [m]

2.46

2.58

2.68

2.79

2.9

3.04

Cells

Weight [kg]

4.65

4.95

5.2

5.5

5.85

6.2

Weight range *[kg]

55 - 75

70 - 90

78 - 100

90 - 112

105 - 130

115 - 145

Weight range *[lbs]

121 - 165

154 - 198

172 - 220

198 - 247

231 - 287

254 - 320

Min. speed [km/h]

23 - 25

Trim speed [km/h]

37 - 39

Top speed (accelerator)[km/h]

50 - 52

Glide ratio

+10

Min. sink rate [m/s]

1.05

Certificate

LTF/EN-B

* pilot equipped = weight naked + cca. 20 kg (44 lbs)

Item	Material
Surface Top Leading Edge:	Skytex 38 Classic - E25A, 38 g/m²
Surface Top Trailing Edge:	Skytex 38 Classic - E25A, 38 g/m²
Surface Bottom:	Skytex 38 Classic - E25A, 38 g/m²
Main ribs:	Skytex 40 Hard - E29A, 40 g/m²
Diagonal ribs:	Skytex 40 Hard - E29A, 40 g/m²
Minor ribs:	Skytex 38 Classic - E25A, 38 g/m²
Upper lines:	Edelrid Aramid/Kevlar 8000U -70 kg; -90 kg; -130 kg
Main lines:	PPSL 160; 191; 200

Item

Material

Surface Top Leading Edge:

Skytex 38 Classic - E25A, 38 g/m²

Surface Top Trailing Edge:

Skytex 38 Classic - E25A, 38 g/m²

Surface Bottom:

Skytex 38 Classic - E25A, 38 g/m²

Main ribs:

Skytex 40 Hard - E29A, 40 g/m²

Diagonal ribs:

Skytex 40 Hard - E29A, 40 g/m²

Minor ribs:

Skytex 38 Classic - E25A, 38 g/m²

Upper lines:

Edelrid Aramid/Kevlar 8000U
-70 kg; -90 kg; -130 kg

Main lines:

PPSL 160; 191; 200

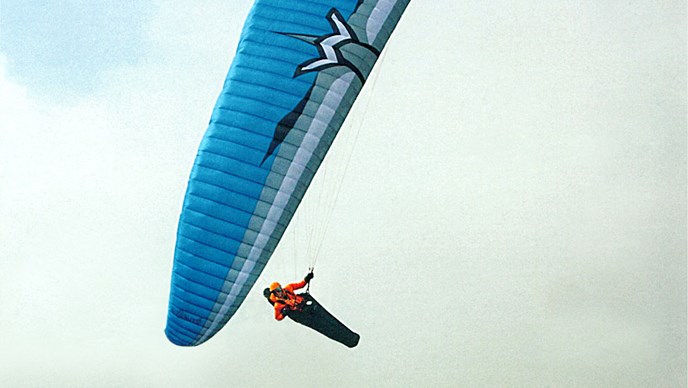

Is it a walk in the park for Mac Para’s updated high-end EN B? Marcus King takes a bite

In summary, this is a carefully-crafted wing that sits with the best of the class in terms of performance and feeling. The handling is a delight and trimmed to get the best out of lift easily, but retaining a dynamic side when needed. It’s a wing that will happily devour the kilometres without demanding too much of the pilot, yet is engaging enough to put a smile on your face. A firm contender if you are looking for this class of wing.

Marcus King
XCmag.com

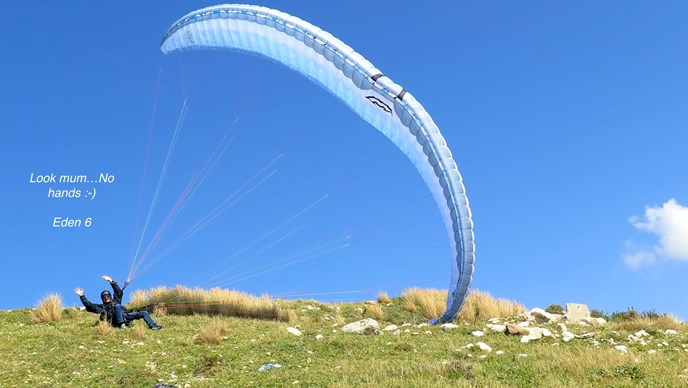

Eden 6 Report by Ziad Bassil - The magical flying carpet

There are many gliders popping out each week/month in every category. It’s very rare to find a flaw in today’s gliders. As a reviewer I always search for those tiny flaws if occurred… But it’s becoming more and more difficult! Companies are doing their best to give us the best possible and magical flying carpets.

Ziad Bassil

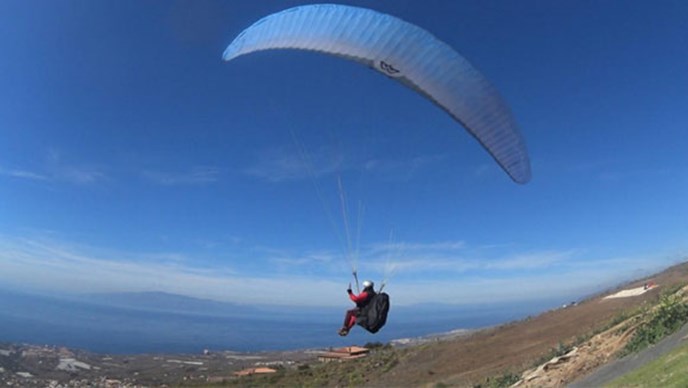

Report by Jürgen Karthe

The Eden 6 is a great wing, giving enormous pleasure. Its the "Bird of Paradise" in 6th generation. A switch from Eden 5 to 6 should differ only in the higher performance of the new sail. The new Mac Para Eden 6 has an overall balanced and manageable basic characteristic and provides a great, safe feeling in the flight (fly in peace). Even in turbulent conditions, the wing retains largely stoic and does not detract from the good feeling of flight. The glide of the Eden 6 is at the top of the current B segment. The manufacturer claims a glide ratio of 10+. This seems to be no dreamy optimism, but is according to our experience, corresponding to the reality.
